VICKERS CUM BRINELL HARDNESS TESTER

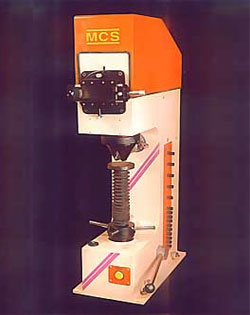

Vickers Cum Brinell Hardness Tester

MCS Make Hardness Testers of Vickers series are designed and manufactured for very high accuracy, ease of operation, reliability and long-term stability.

These machines are suitable for checking Vickers or Brinell hardness of steel and other metals. Loads are applied with dead weights and are selectable with a push button.

The measurement of Diagonal/Diameter of indentation is done with the help of built-in optical system with graduated readout with micrometer. After taking the indentation on work piece, the objective lens is automatically swiveled in position and indentation image appears on the focusing screen fitted in the front of the machine.

Loading cycle is started with push button in the front where unloading is done manually by a hand lever.

All models i.e-MVM-120, MVM-120 S, MVM-250, MVM-250 S confirm to IS 1754 & BS 427 for Vickers & IS 2281-1983, BS 240, ASTM-E-10 for Brinell Hardness.




HIGHLIGHTS

  Testing range is very wide, from soft metal such as Lead up to the hardest, like hardened steel.
  Thin Sheet metal is perfectly tested because the load applied is very small.
  Built-in projection screen to get accurate results.


SPECIFICATIONS

Model
MVM -120
MVM - 120-S
MVM - 250
MVM - 250-S
Load (kgf)
5, 10, 15,20, 30, 40,50, 60, 100 & 120 (Load for Vickers)
1,2, 5, 10, 15,20, 30, 40, 50, 60, 100 & 120 ( Load for Vickers)
5, 10, 15,20, 30,40, 50, 60, 100 & 120 ( Load for Vickers) 15.625, 31.25,62.5, 187.5,250 ( Load for Brinell)
1, 2,5, 10, 15,20,30, 40, 50,60, 100 & 120 ( Load for Vickers) 15.625, 31.25,62.5, (Load for Brinell)
Optical Magnification
70X.140X
70X.140X
35X,70X,140X
35 X, 70X, 140X
Maximum Test Height (mm)
250
250
250
250
Sweep of machine frame (mm)
150
150
150
150
Weight Approx.(kgs)
180
180
180
180
Dimensions (L X W X H mm) Approx.
650 X 320 X 990
650X320X1130
650 X 320 X 990
650 X 320 X 1130
Connected load
0.1 KVA, 1 Phase AC, 220V, 50Hz
Load can be supplied in Newtons also Least count of Optical System 0.005 mm.


COMPUTERISED SYSTEM

In a computerised system, the image is digitized using CCD camera fitted with the machine. The digitized image is sent to PC and by means of software the diagonals are measured automatically to give Vickers Hardness Number.

Measuring Range : 0-3.2mm/0-1.6mm/0-0.8mm with 35X/70X/140X magnification respectively

* Note : All above models are available with computerised version. When Computerised model is required, word 'PC to be added in model for example MVM -120 / PC, MVM-120S / PC, MVM- 250PC.


STANDARD ACCESSORIES

Model
MVM -120
MVM - 120-S
MVM - 250
KVM - 250 - S
1) Flat table of 100 mm Dia
1 No.
1 No.
1 No.
1 No.
2) Vee table for specimen - 6 to 80 mm Dia.
1 No.
1 No.
1 No.
1 No.
3) Vickers Diamond Indentor
1 No.
1 No.
1 No.
1 No.
4) 2.5 mm Ball Indentor
-
-
1 No.
1 No.
5) 5.0 mm Ball Indentor
-
-
1 No.
1 No.
6) Vickers Hardness Test Plate
1 No.
1 No.
1 No.
1 No.
7) Brinell Hardness Test Plate
-
-
1 No.
1 No.
8) Electrical Cord
1 No.
1 No.
1 No.
1 No.
9) Instruction Manual
1 Book
1 Book
1 Book
1 Book
10) 2.5 mm Balls
-
-
5 No.
5 No.
11) 5 mm Balls
-
-
5 No.
5 No.

* Note: Due to constant Research and Development, Specifications and Features are subject to change without notice.
