Electronic Spring Testing Machines

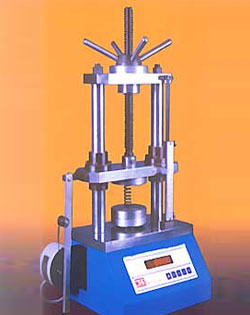

MCS range of spring testing machines are used for quick and accurate testing of tension and compression springs. The machine comprises of two hard crome plated columns with fine cut single screw with hand wheel for manual loading and unloading arrangement. The machine uses a high precision load cell for measurement of force. For displacement measurement, mechanical linear scale or digital vernier caliper or rotary encoder is used. Measuring system of machine is based on latest microprocessor based electronics with tare facility.
FEATURES
Microprocessor based unit.
Force Measurement Accuracy +/-1 % of indicated load or 0.5 % of full load value whichever is higher.
Quick and accurate measurement.
Interchangeable load cells.
Modulus data for load & displacement.
Optional Dot-Matrix printer interface.
Optional RS-232 Computer interface with window based software.
OPTIONS
• Digital vernier scale with 0.01 mm resolution for displacement indication (6" or 12").
• Rotary encoder with separate digital unit 0.1 or 0.01 mm resolution.
• 9/24 pin Dot-Matrix printer interface.
• Serial interface hardware with data transfer software to computer.
• Motorised loading operation.
TECHNICAL SPECIFICATIONS
Model |
MCS-STM20 |
MCS-STM200 |
MCS-STM500 |
Maximum Capacity |
20 kg, 10 kg, 5 kg |
200 kg, 100 kg, 50 kg |
300 kg, 500 kg |
Width between Columns |
160 mm |
160 mm |
250 mm |
Maximum Cross Head Travel |
160 mm |
160 mm |
250 mm |
DISPLACEMENT MEASURING RESOLUTION
Type |
Range |
Resolution |
Mechanical Scale - (Standard) |
0-150 mm |
1.00 mm |
Digital Vernier Gauge (Optional) |
0-150 mm |
0.01 mm |
Rotary Encoder (Optional) |
0-150 mm |
0.10 mm / 0.01 mm |
